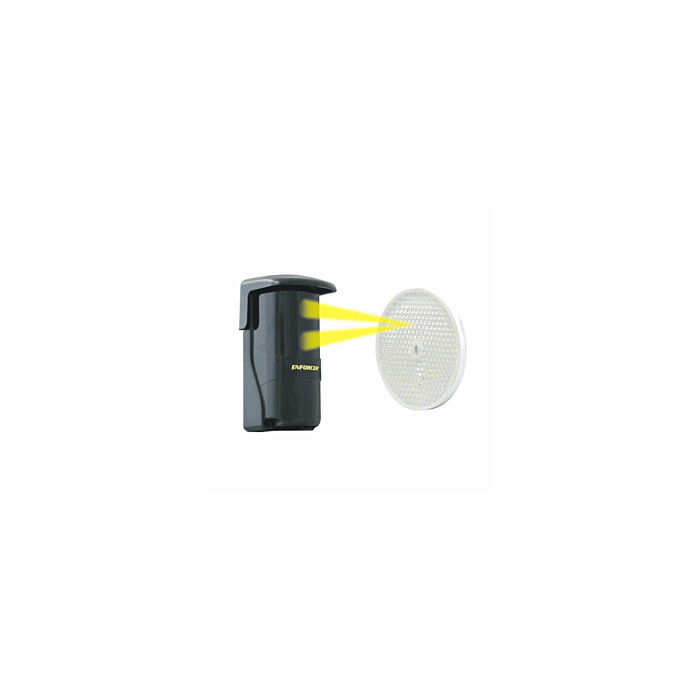

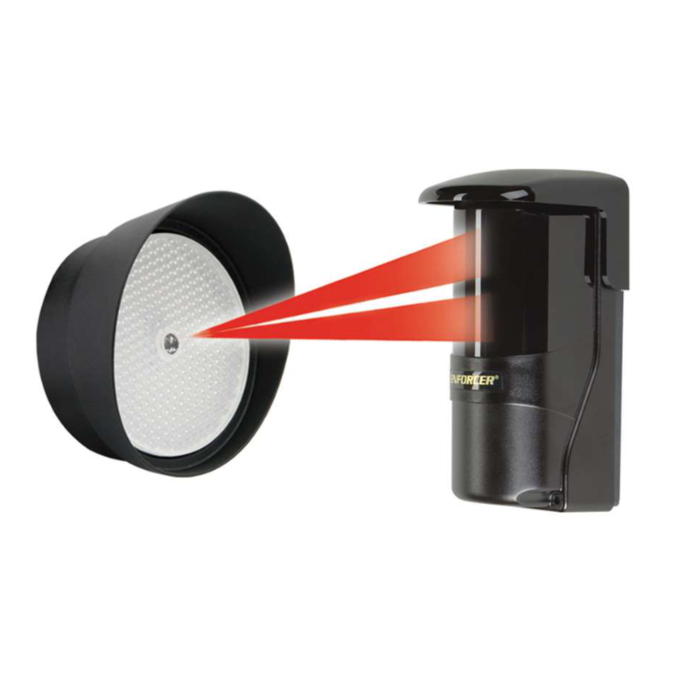

The ENFORCER E-931-S50RRGQ 50ft Reflective Photoelectric Beam Sensor provides reliable sensing of objects that enter the space between the sensor and reflector, thus breaking the infrared beam. It is suitable for various types of such as detection such as sensing approaching vehicles to open a garage door or outdoor gate, as an entry notification for stores, to assist in measuring parking distances, or an alarm notification, as well as many other uses.
Up to 50ft (15m) sensing range
Weatherproof (IP55) construction
Anti-condensation housing
12-30V DC/AC 60Hz, 100mA
Round, ø3-1/4″ (82mm) reflector
Form C relay: 0.5A@30VAC/VDC
Beam status LED
N.C. Tamper switch, 500mA@30VAC/VDC
Specifications
Type: Reflective photoelectric beam sensor
Operating voltage: 12-30V DC/AC 60Hz, 100mA
Sensing Range: Up to 50′ (15m)
Current draw Standby: 55mA@12VDC Active:40mA@12VDC
Reaction time: 10ms
Light Source: IR LED
LED indicators:
Solid green: Good beam signal, properly aligned
Alternating flash: Poor beam signal
Solid red: No beam signal, triggered
Trigger output: SPDT Relay output (NO/NC/COM with built-in 10kΩ resistor on N.O. output)
