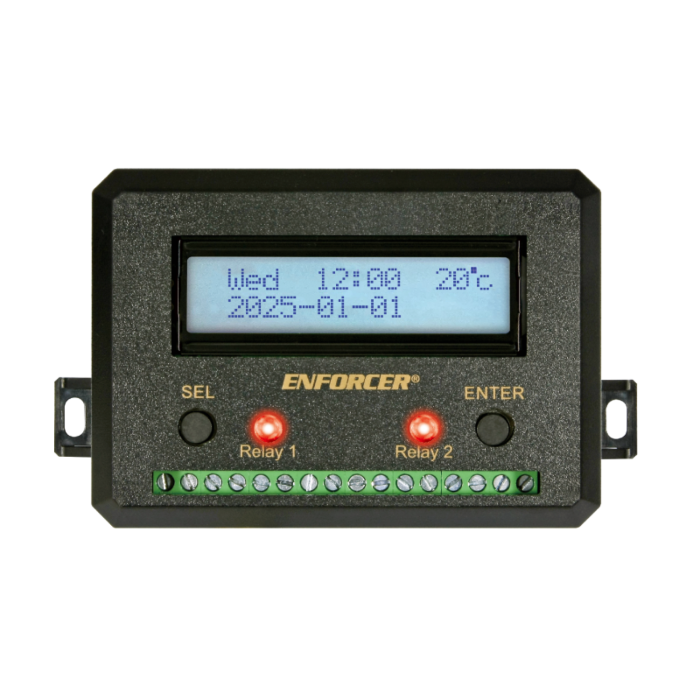

ENFORCER "365 DAY" ANNUAL TIMER (10A @ 14VDC)

Features:

• Two N.O. or N.C. Form C relays, 10A@14VDC, one egress input per relay

• Each relay programmable for 99 events, to a total of 198 individual programmable events

• Each event can be set weekly, daily, or hourly, over the course of a year

• Passcode protection can be turned ON or OFF

• Block programming allows events to be repeated on consecutive days

• First-person-in function interrupts the normal operation of the annual timer

• Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1~99 seconds)

• 20 Programmable holidays

• Tandem mode allows both relays to operate simultaneously

• Built-in clock backup capacitor (saves date/time 7-10 days after power loss)

• Built-in smart backup battery charger for external backup battery (not included)

• Compensates for leap years and can be set for Standard or Daylight Savings Time.

• Alphanumeric backlit LCD display for easy programming

• Exposed terminals for easy installation

Specifications:

• Operating Voltage: 12~24 VDC/VAC

• Number of Relays: 2 Form C

• Relay Rating: 10A@14VDC

• Current Draw: Active - 60mA@12VDC ±10% (per channel)  Standby - 14mA@12VDC ±10%

• Number of Programmable Events: 99 for each relay, 198 total

• Backup battery type: 12VDC (not included)

• Number of Programmable Holidays: 20

• Battery Charging Current: Smart charge, 50mA max., when battery is ≥11.5V and ≤12.8V

• Security Code: 4-digits, numeric, ON/OFF

• Dimensions: 4-1/8″ x 3″ x 1-5/16″ (105 x 76 x 33 mm)
