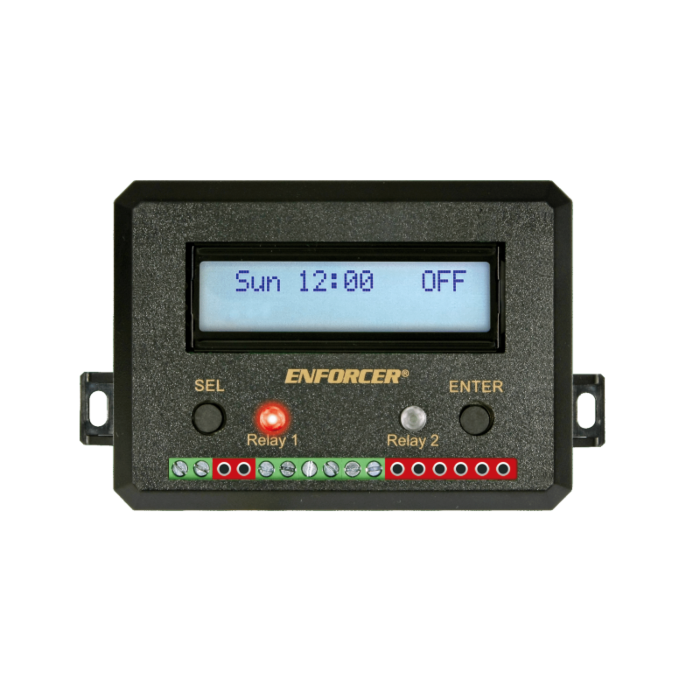

ENFORCER "7 DAY" WEEKLY TIMER (12-24 VAC/10-48 VDC)

Features:

• Wide operating voltage range – 10~48 VDC, 12~24 VAC

• One (1) N.O. or N.C. Form C relay, 10A@14VDC, with an egress input

• First-person-in (first-man-in, FM) function interrupts the normal operation of the timer

• 60 Programmable events set weekly, daily, or hourly, over a week

• Programmable holiday event – holiday from 1~31 days in duration

• EEPROM Memory for safe data protection in case of power failure

• No clock battery to replace – built-in super capacitor saves date/time 5-10 days after power loss

• Easy troubleshooting status checks – relay test, power input voltage

• Passcode protection can be turned ON or OFF

• Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1~99 seconds)

• Enable/Disable 1-hour offset as a quick setting during Daylight Savings Time

• Large alphanumeric white backlit LCD display for easy programming

Specifications:

• Operating Voltage: 10~48 VDC / 12~24  VAC

• Number of Relays: 2 Form C

• Relay Contact Rating: 10A@14VDC

• Relay Active Current Draw: 110mA@12VDC ±10% (per channel)

• Standby current draw: 14mA@12VDC ±10%

• Backup battery type: 12VDC (supports lead-acid compatible battery, not included)

• Battery charge: Smart charge, 50mA max., when battery is ≥11.5V and ≤12.8V

• Event capacity: 60 per relay

• Operating temperature: -4°~167° F (-20°~75° C)

• Dimensions: 4-1/8″ x 3″ x 15/16″ (105 x 76 x 33 mm)
