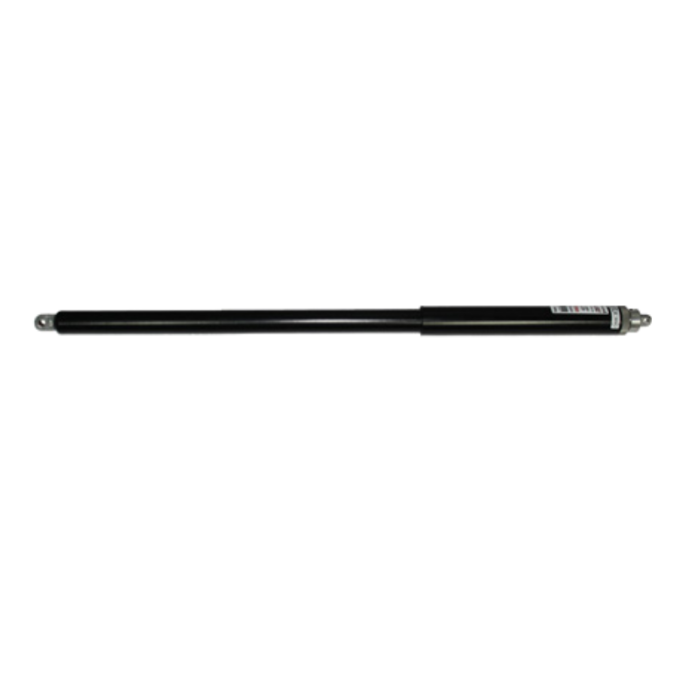

Features: - Quick and easy installation for both in-line and offset hinge arrangements
- Adjustable hydraulic (nitrogen gas) controlled closing speed
- Suitable for use with LockeyUSA keyless locks
- PVC Coated Zinc Plated Steel
- The TB250+ is not compatible with gates less than 30 inches wide
Ideal For: - Both new and existing gate systems
- Residential and commercial gates
- Pool gates
- Any application where gate must close automatically for safety and security
Technical Overview: Gate Weight: ,50-125 lbs. ,
Gate Width: ,36-52 in.
Max. Opening Angle: ,100 degrees
Min. Operating Temperature: ,15 degrees Fahrenheit
Max. Operating Temperature: ,122 degrees Fahrenheit
Type of Gate Material: ,Vinyl, Steel, Wood, Chain Link*
Closing/Latch Method: ,Hydraulic/Nitrogen Gas
Material: ,Steel
Finish: ,PVC Coated
Hinge Arrangements: ,In-line or Offset
Opening Pressure: ,Approx. 3-7 lbs.
*Mounts on Chain Link with TB-LINX (sold separately)
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer. Opening Force Chart: ADDED OPENING FORCE:
Gate Closer , , , , , , 36"" Gate , , , , ,48"" Gate , , , , , 60"" Gate , , , Constant Closing Pressure
No Closer , , , , , , , , 3/4 lb. , , , , , , 1/2 lb. , , , , , , , , , , , , ,1/4 lb. , , , , , , , , , , , , , , ,0
TB250 , , , , , , , , , , , ,6 lbs. , , , , , , , 4 lbs. , , , , , , , 3 lbs. , , , , , , , , , , , , ,45 lbs.
ADDED FORCE AT 45 DEGREE OPEN:
Gate Closer , , , , , ,36"" Gate , , , , 48"" Gate , , , , , 60"" Gate
TB250 , , , , , , , , , , , 7 lbs. , , , , , , 5 lbs. , , , , , , , 4.5 lbs.
NOTE: All measurements are taken using the 1st mounting hole on the post bracket with a 3"" distance between the center of the hinge and the center of the post mounting bracket. , The opening pressure will INCREASE using the 2nd, 3rd and 4th holes. , These are ""ADDED"" opening pressures. , This chart DOES NOT take into consideration the hinge arrangements, quality of hinges, ease of operation, wind, etc. |
