THIS IS A SPECIAL ORDER ITEM **

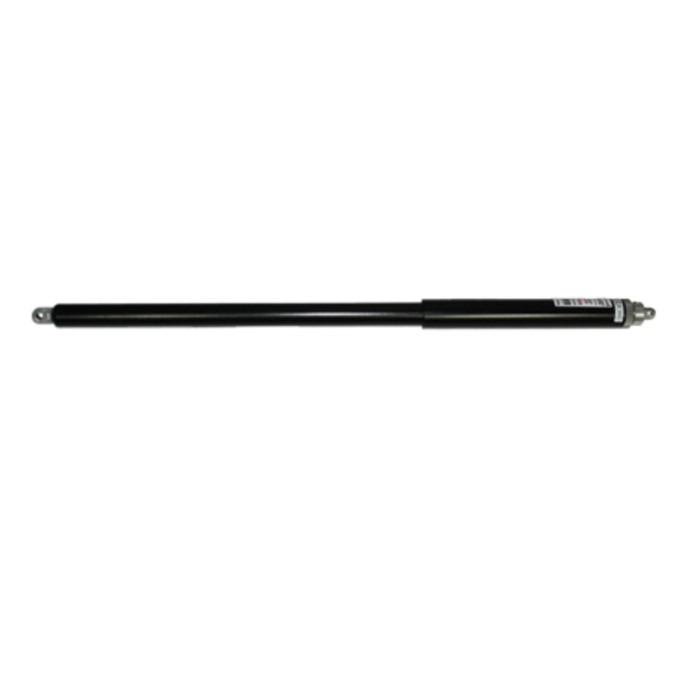

Features: - Quick and easy installation for both in-line and offset hinge arrangements
- Adjustable hydraulic (nitrogen gas) controlled closing speed
- Suitable for use with LockeyUSA keyless locks
- PVC Coated Zinc Plated Steel
- The TB650+ is not compatible with gates less than 30 inches wide Ideal For: - Both new and existing gate systems
- Residential and commercial gates
- Pool gates
- Any application where gate must close automatically for safety and security
Technical Overview: Gate Weight: ,150-250 lbs. ,
Gate Width: ,44-72 in.
Max. Opening Angle: ,100 degrees
Min. Operating Temperature: ,15 degrees Fahrenheit
Max. Operating Temperature: ,122 degrees Fahrenheit
Type of Gate Material: ,Vinyl, Steel, Wood, Chain Link*
Closing/Latch Method: ,Hydraulic/Nitrogen Gas
Material: ,Steel
Finish: ,PVC Coated
Hinge Arrangements: ,In-line or Offset
Opening Pressure: ,Approx. 8-18 lbs.
*Mounts on Chain Link with TB-LINX (sold separately)
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer. Opening Force Chart: ADDED OPENING FORCE:
Gate Closer , , , , , , 36"" Gate , , , , ,48"" Gate , , , , , 60"" Gate , , , Constant Closing Pressure
No Closer , , , , , , , , 3/4 lb. , , , , , , 1/2 lb. , , , , , , , , , , , , ,1/4 lb. , , , , , , , , , , , , , , ,0
TB650 , , , , , , , , , , , 13 lbs. , , , , , , ,10 lbs. , , , , , , ,8 lbs. , , , , , , , , , , , , 135 lbs.
ADDED FORCE AT 45 DEGREE OPEN:
Gate Closer , , , , , ,36"" Gate , , , , 48"" Gate , , , , , 60"" Gate
TB650 , , , , , , , , , , 18.5lbs. , , , , ,13.5 lbs. , , , , , 12 lbs.
NOTE: All measurements are taken using the 1st mounting hole on the post bracket with a 3"" distance between the center of the hinge and the center of the post mounting bracket. , The opening pressure will INCREASE using the 2nd, 3rd and 4th holes. , These are ""ADDED"" opening pressures. , This chart DOES NOT take into consideration the hinge arrangements, quality of hinges, ease of operation, wind, etc. |
