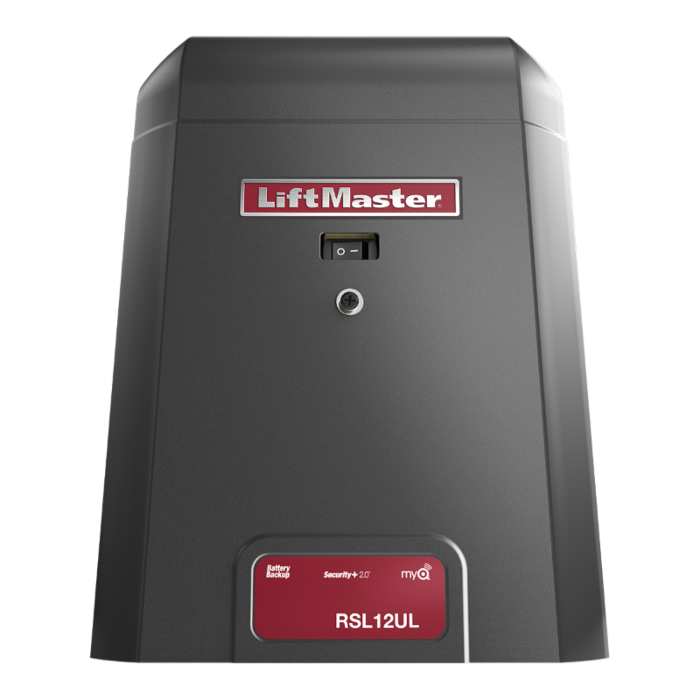

LIFTMASTER 12V DC "SLIDING" GATE OPERATOR (50'/800#)

• LMRRUL -Monitored Retroreflective Photo Eye. Enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
• LMS505AL -Monitored Small Profile Resistive Edge. Pressure-sensitive edge stops and/or reverses gate when obstructed.

Reliable

• Solar-Ready, Ultra-Reliable System delivers power when and where you need it.
• Battery Backup provides seamless access by providing standby power when the power is down. RSL12UL features battery backup that provides up to 114 cycles or 63 days of standby power.
• Smooth Start/Stop Operation and mid-travel reversal extend operator hardware life.
• Commercial Gear-Driven Transmission provides unsurpassed reliability.
• Warranty 3 years.

Smart

• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless Dual-Gate Communication synchronizes gate opening/ closing and eliminates expensive driveway trenching costs.

Safe and Secure

• Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
• Posilock® prevents gate from an unauthorized manual open.
• Fire Department Compliance allows gate to auto-open upon loss of ac power or battery depletion.
• Manual Disconnect when unlocked allows gate to be opened manually.
• UL® Listed gate operators with monitored safety entrapment protection devices.

Power

• 115VAC
• Solar-Ready, Ultra-reliable System delivers power when and where you need it
• Accessory Power: 12VDC 500mA outpuT

Commercial Grade Design

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: 1-piece UV-resistant polyethylene cover
• UL® Usage Classification: I, II, III and IV
• Operator Weight: 100 Lbs.

• Height: 23.30”
• Width: 16.24”
• Depth: 16.76”

• Without Heater: -4°F (-20°C) to 140°F (60°C)
• With Optional Heater: (HTR) -40°F (-40°C) to 140°F (60°C)

Gate Travel Speed: 10” per second

Standard Features

• Synchronized Close simultaneously closes gates
• Quick Close and Anti-Tailgate Quickly secure property, preventing unauthorized access (requires expansion board)
• Inherent Reversing Sensor Detects obstructions and reverses gate when closing or stops/reverses
• Monitored Safety Inputs 3 main board, 3 optional expansion board
• Security+ 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM)
• Led Diagnostic Display simplifies installation and troubleshooting Programmable Auxiliary Relays make adding additional features easy
• Homelink® Compatible version 4.0 or higher (May require an external adapter depending on the model and year of your vehicle.)
