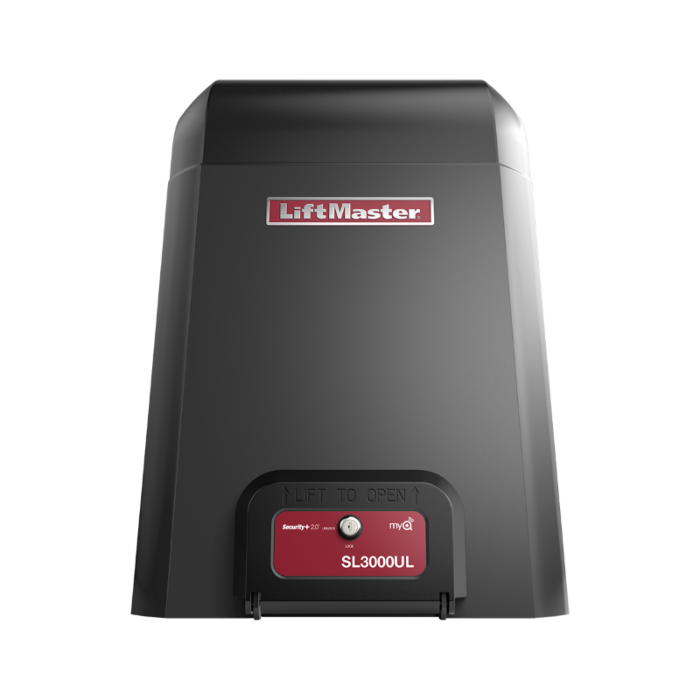

LIFTMASTER 1 H.P. COMMERCIAL "SLIDING" GATE OPERATOR

• Legacy elite heavy-duty commercial gear-driven transmission provides unsurpassed reliability.
• Limit switch design provides precision limit accuracy and reliability.
• Surge suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
• Warranty 5 years commercial, 7 years residential.

Smart

• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless dual-gate communication synchronizes gate opening/ closing and eliminates expensive driveway trenching costs.

Safe and Secure

• Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
• Inherent reversing sensor detects obstructions and reverses gate when closing or stops/reverses the gate when opening.
• Pre-motion warning alarm activates on-board alarm 3 seconds prior to gate motion.
• Manual disconnect when unlocked allows gate to be operated manually.
• Quick close and anti-tailgate quickly secure property, preventing unauthorized access.
• UL® Listed Gate operators with monitored safety entrapment protection devices.

Mechanics

• Continuous-Duty Motor with Class H Insulation is rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
• Operator Duty Rating: Continuous Duty
• Wormgear Reduction: Commercial oil-bath gearbox providing 30:1 Wormgear Reduction
• Chain: #41 Black Oxide (25ft. Supplied)

Power

• 115V Single-Phase
• Accessory Power: 24VDC 500mA output
• 2 Auxiliary Outlets
• Optional Kit (3PHCONV) to convert an input voltage of 208/240/480/575VAC to an output Voltage of 115VAC

Commercial-Grade Design

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: High-Density, UV-Resistant , 1-Piece Polyethylene plastic for excellent heat and corrosion resistance
• UL® Usage Classification: I, II, III and IV
• Operator weight: 140 lbs.

Dimensions

• Height: 26.51”
• Width: 18.14”
• Depth: 20.39”

Temperature Specifications

• Without heater: -4°F (-20°C ) to 140°F (60°C
• With optional heater: (HTRNB) -40°F (-40°C ) to 140°F (60°C)

Gate Travel Speed: 12” per second

Standard Features

• External Alarm Reset Button instantly resets the built in safety alarm siren
• Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
• Monitored Safety Inputs 3 main board, 3 expansion boards
• Security+ 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM).
• Led Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays make adding additional features easy
• HomeLink® Compatible Compatibility Bridge™ (not included) necessary for certain vehicles
