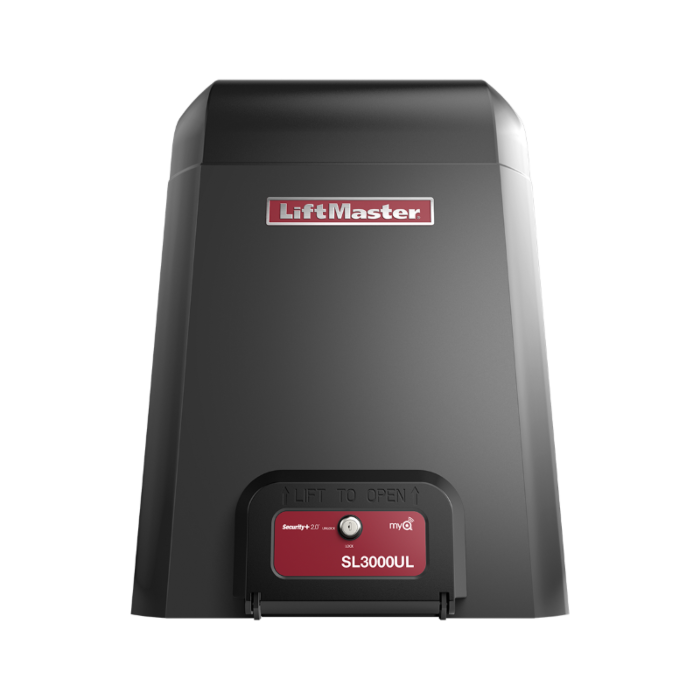

LIFTMASTER 1/2 H.P. COMMERCIAL "SLIDING" GATE OPERATOR

PLEASE NOTE: A TARIFF FEE WILL BE ADDED TO THIS ITEM AT CHECKOUT ***

*** Included Accessories ***

• LMRRUL - Monitored Retro Reflective Photo Eye. Enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
• LMS505AL - Monitored Small Profile resistive edge. Pressure-sensitive edge stops and/or reverses gate when obstructed.

• Continuous-Duty Motor with Class H Insulation is rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
• Operator Duty Rating: Continuous Duty
• Wormgear Reduction: Commercial oil-bath gearbox providing 30:1 Wormgear Reduction
• Chain: #41 Black Oxide (25ft. Supplied)

• 115V Single-Phase
• Accessory Power: 24VDC 500mA output
• 2 Auxiliary Outlets
• Optional Kit (LM3PHCONV) to convert an input voltage of 208/240/480/575VAC to an output Voltage of 115VAC

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: High-Density, UV-Resistant , 1-Piece Polyethylene plastic for excellent heat and corrosion resistance
• UL® Usage Classification: I, II, III and IV
• Operator weight: 140 lbs.

• Height: 26.51”
• Width: 18.14”
• Depth: 20.39”

Temperature Specifications

• Without heater: -4°F (-20°C ) to 140°F (60°C
• With optional heater: (HTRNB) -40°F (-40°C ) to 140°F (60°C)

• 12” per second

• External Alarm Reset Button instantly resets the built in safety alarm siren
• Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
• Monitored Safety Inputs 3 main board, 3 expansion boards
• Security+ 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM).
• Led Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays make adding additional features easy
