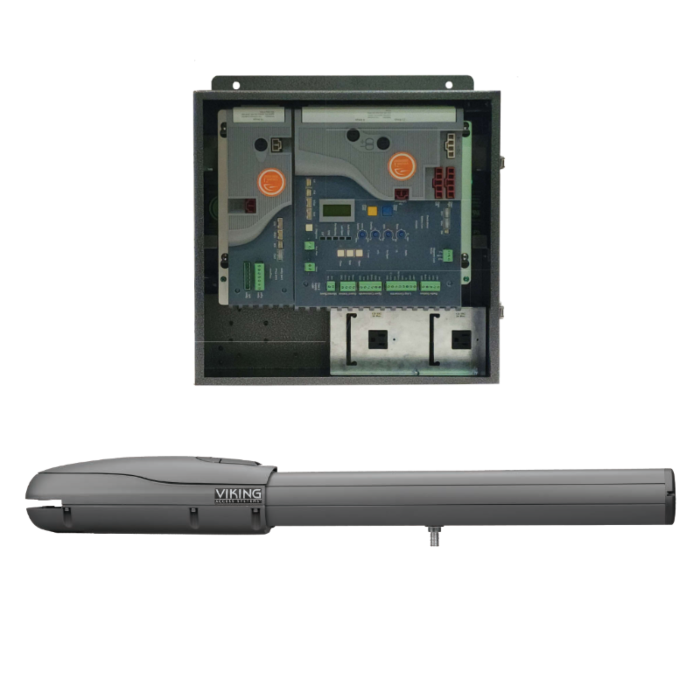

VIKING G-5NX COMPLETE SET (ECU & 1 ARM) ACTUATOR SWING GATE OPERATOR (SGL) (10'/2000 - 18'/800)

Operational Specifications

Operation: 24 VDC with 1/2 HP Motor
Main Power Source: 115/230 VAC Single Phase
Battery: 7 AMP Hour 12 VDC x 2
10 ft. Gate - 2000 lbs. / 12 ft. Gate - 1500 lbs.
16 ft. Gate - 1000 lbs. / 18 ft. Gate - 800 lbs.
Max. Opening Speed: 15-18 Seconds per 90°
The G-5 will Open Inside to a 120°. Open Outside to a 105°
Fail-Safe / Fail-Secure Option
Battery Back-up: 400 Full Cycles (600 lbs. / 12’ Gate)
Max Duty Cycle: 100 % (Continuous Cycles)
Temperature: -4° F to + 158° F
Access Key Release For Manual Operation
Built-in Three Push Button Station
On-Board Lightning Protection
Solar Panel Ready: Requires 24VDC 80 watts
Limited Factory Warranty: 4 Year Res. and 3 Year Com.
