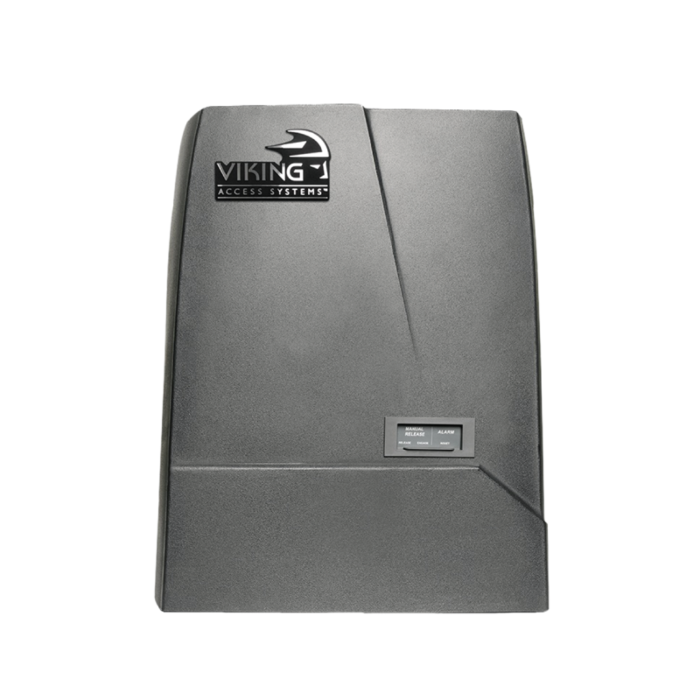

VIKING H-10NX SUPER DUTY COMMERCIAL "SLIDING" GATE OPERATOR (75'/2200)

Operational Specifications

• Operation: 24 VDC with 1 HP Motor
• Main Power Source: 120/220 VAC Single Phase
• Battery: 7 AMP Hour 12 VDC x 2
• Capacity: 2200 lbs.
• Max. Gate Length: 75 FT.
• Max. Opening Speed: 12” Per Second
• Innovative Fine Tune Adjustment - Down to 1/8”
• Fail-Safe / Fail-Secure Option
• Loop Rack Included
• Soft-start, Soft-stop with Adaptive Learn Algorithm
• Battery Back-up: 100 Full Cycles (1000 lbs. /20’ Gate)

• Max Duty Cycle: 100 % (Continuous Cycles)
• #40 Chain Nickel Coated - 25 ft
• Temperature: -4° F to + 158° F
• Access Switch For Manual Operation
• On-Board Lightning Protection
• Solar Panel Ready: Requires 24VDC 80 watts
• Limited Factory Warranty: 7 Year Residential and 5 Year Commercial
