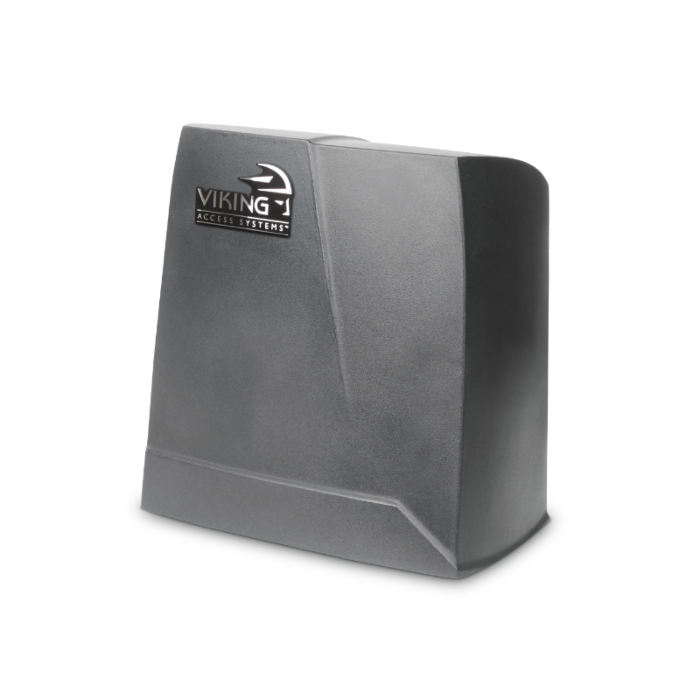

VIKING K-2NX RESIDENTIAL "SLIDING" GATE OPERATOR (30'/700 LBS)

Operational Specifications

• Operation: 24 VDC with 1/2 HP Motor
• Main Power Source: 120/220 VAC Single Phase
• Battery: 7 AMP Hour 12 VDC x 2
• Capacity: 700 lbs.

• Max. Gate Length: 30 FT
• Max. Opening Speed: 12” Per Second
• Fail-Safe / Fail-Secure Option
• Battery Back-up: 100 Full Cycles (700 lbs. / 20’ Gate)
• Max Duty Cycle: 100 % (Continuous Cycles)
• #40 Chain Nickel Coated - 25 ft.
• Operating Temperature: -20°F up to 160°F
• Access Switch For Manual Operation
• Built-in Three Push Button Station
• On-Board Lightning Protection
• Solar Panel Ready: Requires 24VDC 80 watts
• Limited Factory Warranty: 5 Year Residential
