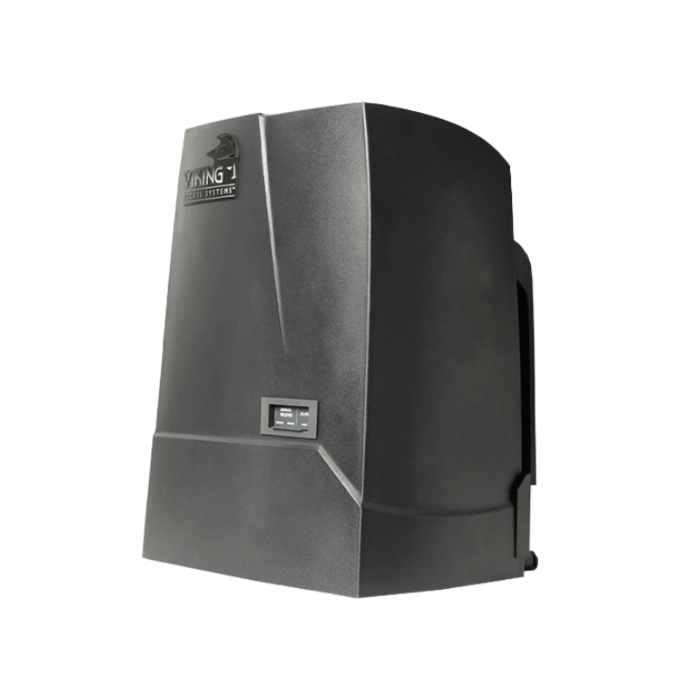

VIKING L-3NX HEAVY DUTY COMMERCIAL SLIDING GATE OPERATOR (60'/1600)

Operational Specifications

• Operation: 24 VDC with 1/2 HP Motor

• Main Power Source: 120/220 VAC Single Phase
• Battery: 7 AMP Hour 12 VDC x 2
• Capacity: 1600 lbs.
• Max. Gate Length: 60 FT.

• Max. Opening Speed: 12” Per Second
• Innovative Fine Tune Adjustment - Down to 1/8”
• Fail-Safe / Fail-Secure Option
• Loop Rack Included
• Soft-start, Soft-stop with Adaptive Learn Algorithm
• Battery Back-up: 100 Full Cycles (1000 lbs. / 20’ Gate)
• Max Duty Cycle: 100 % (Continuous Cycles)
• Operating Temperature: -20°F up to 160°F
• #40 Chain Nickel Coated - 25 ft.
• Access Switch For Manual Operation
• On-Board Lightning Protection
• Solar Panel Ready: Requires 24VDC 80 watts
• Limited Factory Warranty: 7 Year Residential and 5 Year Commercial
