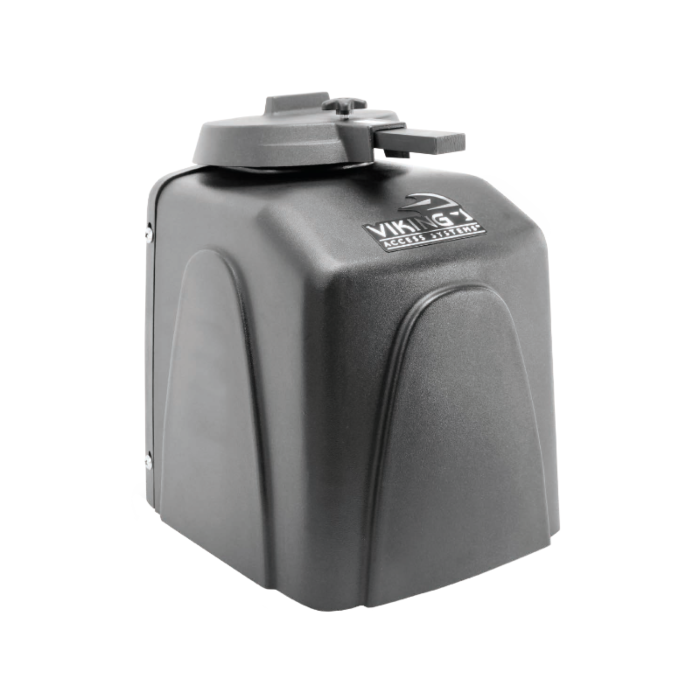

VIKING R-6NX RESIDENTIAL SWING GATE OPERATOR (14'/ 600 LBS)

Operational Specifications

Operation: 24 VDC
Main Power Source: 120/220 VAC Single Phase
Battery: 7 AMP Hour 12 VDC x 2
Capacity: 700 lbs.
Max Gate Length: 14 Feet
Max. Opening Speed: 13-16 Seconds per 90°
Battery Back-up: 400 Full Cycles (600 lbs. / 12’ Gate)
Max Opening: 120°
Temperature: -4° F to + 158° F
UL 325 and 991 Listing
Fail-safe / Fail-secure Clutch Mechanism
On-Board Lightning Protection
Soft-start / Soft-stop W / Intelligent Obstruction Detection
Solar Panel Ready: Requires 24VDC 80 watts
Limited Factory Warranty: 5 Year Residential??
